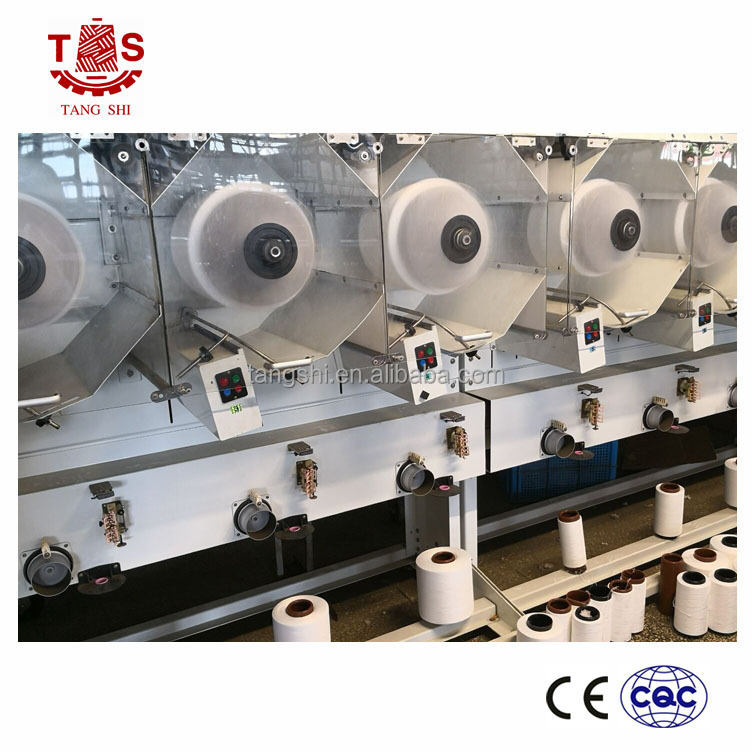

TH-12A Hank reeling machine(Cone to Hank winding machine), Innovative scheme, advanced technology and application. The winding speed of this machine is controlled by computer, which has the maximum of 1200 m/min. Precise and sensitive speed testing system can even ensure the winding length (weight). It is quite suitable for winding yarn of cotton, flax, silk, and chemical fiber.
| Type of winding | Precision winding |
| Speed | Max 1200 Meter/min(depend on process parameters) |
| Package shape | Tubular or skein shape hank yarn |
| Traverse length | 0-300 mm |
| Take-up package diameter | 180-450mm |
| Package weight | Max 2 kgs |
| Supply Package Diameter | Up to 300mm |
| Suit Yarns | High textured yarns, fiber yarns, staple yarns |
| layout | Single side |
| Spindle Nos. of each section | 4 spindles |
| Min/max of spindles | 4-32 spindles |
| Spindle Gauge | 500 mm |
| Drive | Each spindle working separately |
| Installed power | 500w per spindle |
| Power consume | About 200w per spindle |
| Machine size | 2050 x 800 x 1700 mm(one section size) |
